1.Feature:
- Naturally free of latex protein allergens.
- Due to productive of Elongation and Tensile Strength, material is highly resistant to tear, bend or twist.

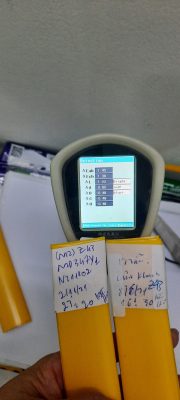

- The PVC Compound formulations can adjust the color details from Transparent to any demand color.
- The most cost effective with the high performance of TOTM, DOTP, DINCH, & DOA..
- Free expedited Sample; Support for rapid production procedure.
- Extremely durable and can withstand a rigorous service environment.
2. Performance Standards
- EU REACH Compliant
- EU ROHS 1, 2 & 3 Compliant
- FDA 21 Compliant
- CA Prop 65 Compliant
- USP Class VI Compliant
- ISO 10993 & ISO 13485 Compliant
3. Applications

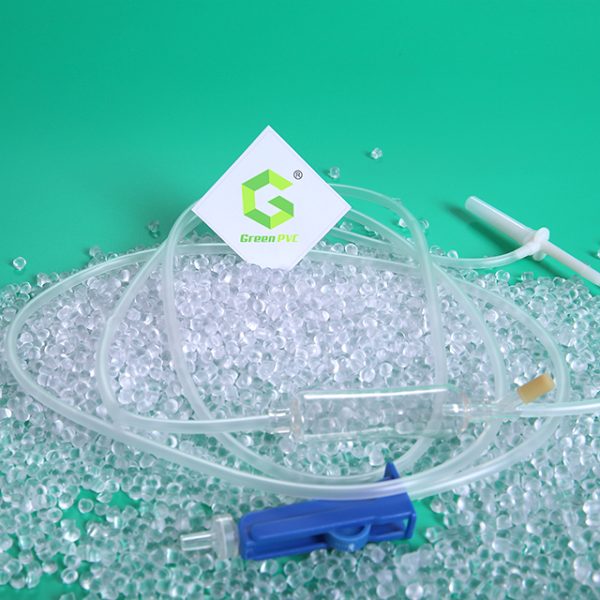

- Drip Chamber
- Medical Tube
- Blood bags
- Other Medical Components: Syringes, Gasket
4. Technical Data Sheets

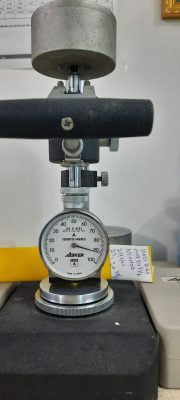

| Specification | Hardness at 23oC | Density at 23oC | Tensile Strength | Elongation at break | Heat Stability at 200o C |
|---|---|---|---|---|---|
| Test Method | ASTM D2240 | ASTM D792 | IEC 811-1-1 | IEC 811-1-1 | IEC 811-3-2 |
| Unit | Shore A | g/cm3 | Mpa | % | Mins |
| NHMD057T | 85 | 1.23 | 21.8 | 330.5 | 45 |
